Modular optical beam smoke detection system with built-in laser and motorized auto-alignment function (replacement for Fireray 5000).

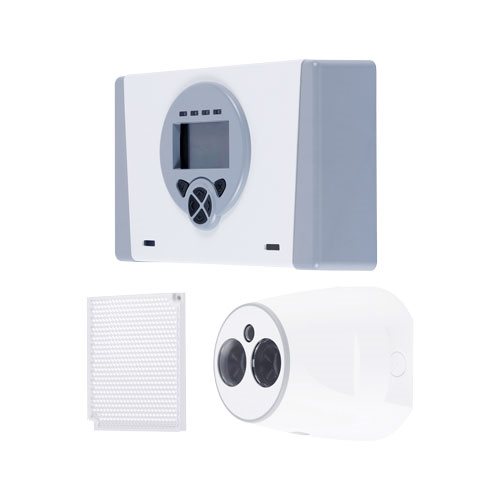

The Fireray Hub Reflective system is a modular beam detection system that can be specified to suit a variety of demanding applications.
With built-in laser and motorized auto-alignment function, the Fireray Hub Reflective is easy to install and maintain. It automatically compensates for environmental effects such as dust, sunlight and building movement to keep false alarms and faults to a minimum. Due to the high enclosure integrity of the hub (IP65) and detectors (IP55), the system can be operated in dusty or wet environments.
The system is fully customisable with both the alarm thresholds (sensitivity) and delay to alarm/fault being controlled from the ground level system controller, with an easy-to-use interface unit and backlit LCD display.
You can connect to and monitor up to three detector heads with independent fire and fault signals for each detector.
To quickly check system operation, you can initiate alarm tests. The event log with time and date stamps makes it easy to diagnose system faults.
Features
- Allows for 3 reflective detectors per system controller
- Laser-assisted, motorised Auto-Alignment from the system controller (optional manual alignment)
- Compensates for natural shifts in alignment from building movement
- Compensates for gradual build-up of contamination on the optical surfaces
- Compensates for high levels of sunlight and artificial lighting
- Beam detectors can be mounted facing each other with the reflectors in the middle
- Approvals include EN54-12 and UL268 7th edition
