High-temperature heat detector for detection of rise in environment temperature caused by a fire.
BD-200PT is often used in areas where the environment is likely to produce false/unwanted alarms from smoke detectors and low-temperature heat detectors, such as:
- Sauna
- Kitchen
- Galley
- Steam rooms

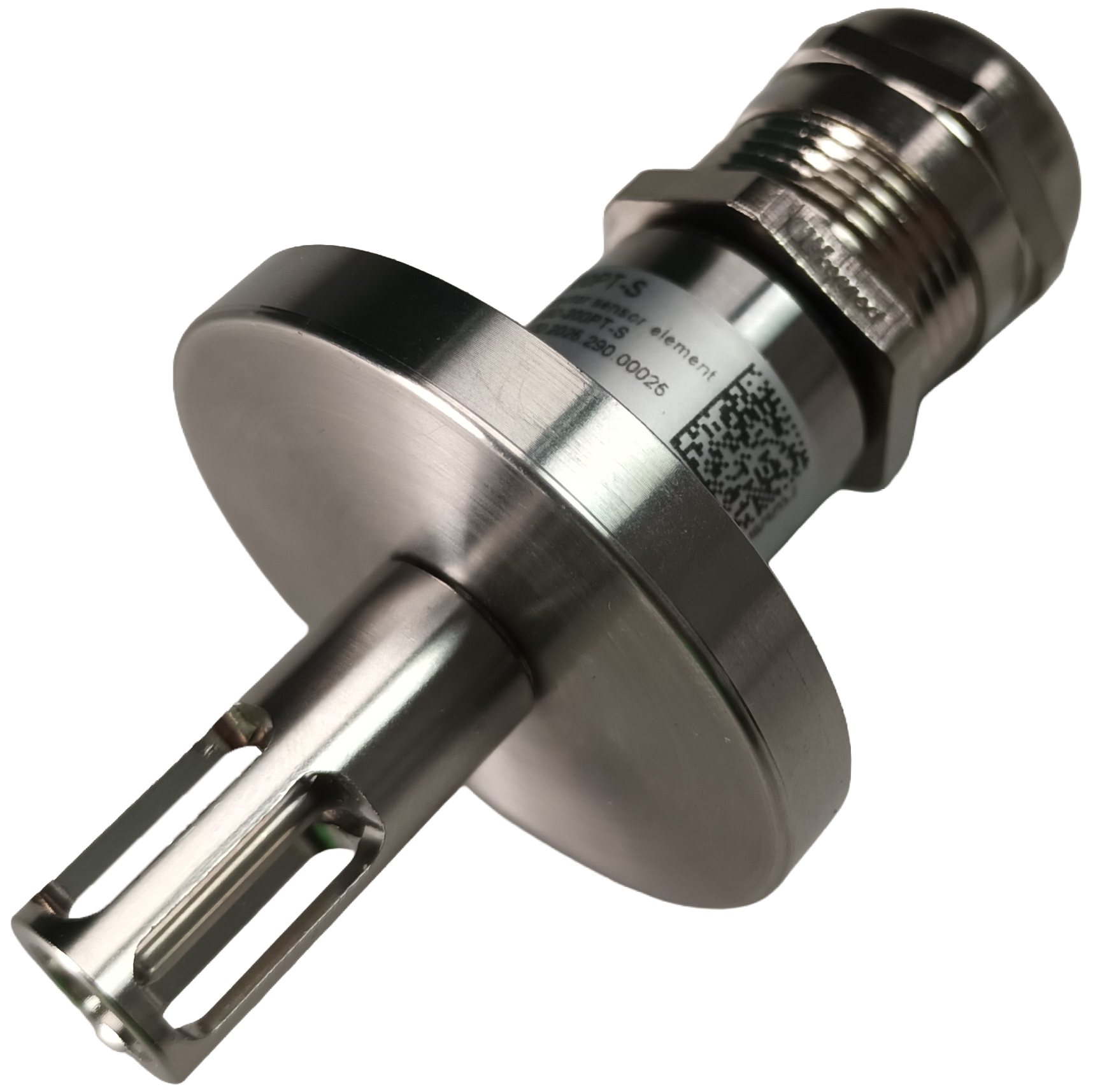

The heat detector consists of a stainless steel sensor element and an interface unit. The sensor element is suitable for high-temperature detection areas like saunas or kitchens. The interface unit should be mounted in a normal temperature area, up to 10 m from the sensor.
Features
- Addressable high-temperature heat detector
- Available in different variants with fixed alarm temperatures
- Up to 10 m distance between the sensor and the interface unit
- Stainless steel sensor mechanics
- Protection grade IP66 (sensor)
- EN 54-5, Category ES (120 variant) or FS (140 variant) when used with an external indicator
- Works with all AutroSafe and Autroprime versions supporting BD-200M
Variants
- Alarm temperature 84 °C, detector category CS (116-BD-200PT/84-KIT)
- Alarm temperature 100 °C, detector category DS (116-BD-200PT/100-KIT)
- Alarm temperature 120 °C, detector category ES (116-BD-200PT/120-KIT)
- Alarm temperature 140 °C, detector category FS (116-BD-200PT/140-KIT)
