Multicriteria protector series V-430

Protector series for land and marine applications

Extreme sensor dynamics provide reliable detection that has greatly reduced detection time and nuisance alarms, and expanded the use to cover even more application areas. The type of operation is configurable to Heat, Optical or Multisensor, covering several applications.

It has a wide range of fire safety features included in one single device, providing significant reduction of wiring and installation costs - and a cleaner look.
The self-sensing technology ensures that the protector is as reliable as when it left the factory for its entire life cycle.

DYFI3D technology
AutroGuard® utilizes DYFI3D technology; MultiAngle/MultiWavelength detection with advanced algorithms analyze the unique signatures for each type of fire and nuisance source in a 3D space, enabling the protector to accurately distinguish between real fires and nuisance alarm sources.

SelfVerify®
The SelfVerify® system function provides a calibrated and automatic self-test every 24 hours. It tests the signal path to the system panel, alarm devices and output units. In this way, the self-test ensures that the protector is able to initiate an alarm when it should, and at the correct sensitivity level according to EN 54 part 5 and 7 throughout its lifetime.

Additionally, an advanced Pulse Response Signal analysis is run every other second, verifying 100 % of the components in the signal path and 99 % of the components in the protector.

Cover Detection
As an add-on feature, AutroGuard® provides Cover Detection. We use infrared light to detect if the protector is covered by a dust cap or any other object, and a fault message will appear. The feature can be turned off during maintenance.

Integrated sounder
AutroGuard® can be delivered with an integrated EN 54-3 approved sounder (optional). Sound patterns and sound levels are configurable, with a maximum sound output of 93 dBA at 1 m range.

Integrated Visual Alarm Device (VAD)
AutroGuard® can be delivered with an EN 54-23 compliant integrated Visual Alarm Device (VAD) (optional). It is available in white or red color, and is configurable to 4 different intensities. The flash rate is also configurable (1 or 2 sec.)

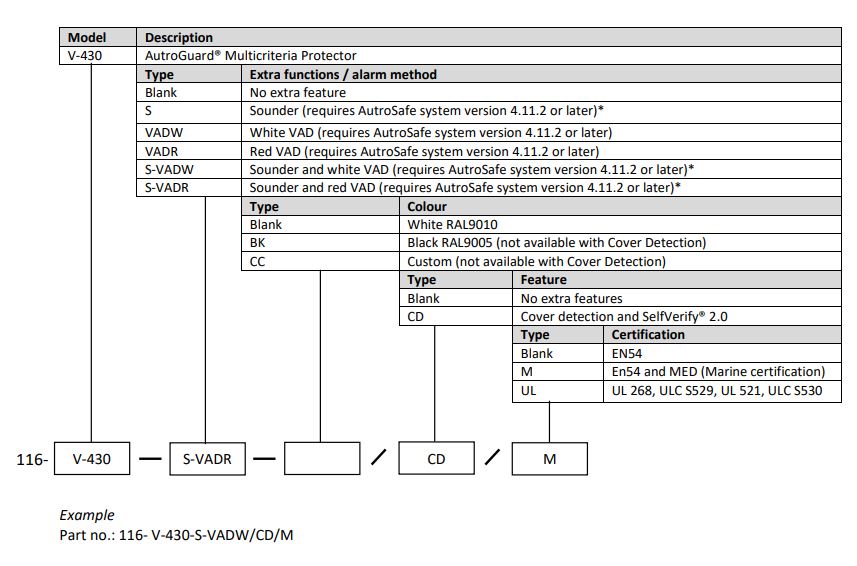

Part number matrix

ModelDescription
V-430AutroGuard® Multicriteria protector
 TypeExtra functions/alarm methods
 Blank No alarm unit
 SSounder
 VADWWhite VAD
 VADRRed VAD
 S-VADWSounder and white VAD
 S-VADRSounder and red VAD
  TypeColour
  BlankWhite
  BKBlack
  CCCustomised colour
   TypeExtra features
   BlankNo extra features
   CDCover Detection & SelfVerify
    TypeAdditional certification to EN 54
    BlankNo additional certification
    MMED (Marine certification)
Products:

Illustrasjonsbilde

Multicriteria protector V-430

Basic smoke/heat detector, no alarm device

Illustrasjonsbilde

Multicriteria protector V-430-S

Combined smoke/heat detector and sounder

Illustrasjonsbilde

Multicriteria protector V-430-VADW

Combined smoke/heat detector and white visual alarm device (VAD)

Illustrasjonsbilde

Multicriteria protector V-430-VADR

Combined smoke/heat detector and red visual alarm device (VAD)

Illustrasjonsbilde

Multicriteria protector V-430-S-VADW

Combined smoke/heat detector, sounder and white visual alarm device (VAD)

Illustrasjonsbilde

Multicriteria protector V-430-S-VADR

Combined smoke/heat detector, sounder and red visual alarm device (VAD)
